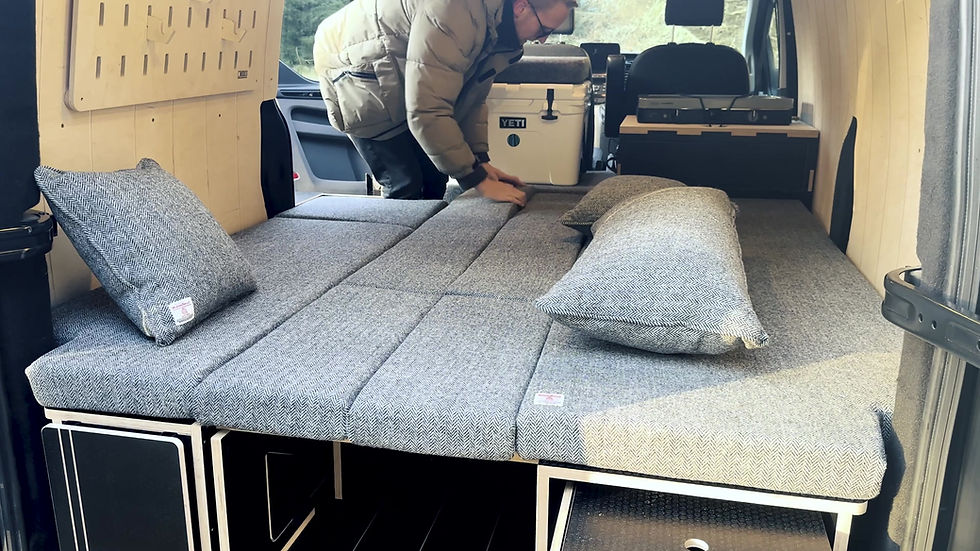

Torridon: Unequal split sliding bed with extending storage / cook station

Torridon: Unequal split sliding bed with extending storage / cook station

PriceFrom £1,150.00



** COLLECTION OR INSTALL ONLY, WE DON'T SHIP THIS PRODUCT SO PLEASE BE AWARE OF THIS BEFORE YOU PURCHASE**



Our Torridon bed & storage system is our most popular unit featuring a pull out bed section and an extending rear drawer (1.4 metres) with optional cookstation or storage lockers.



Add our range of Torridon Upholstery here.



** Please note all images shown include the Clachan unit (passenger side) and Torridon unit (drivers side) as our recommended setup. These items are sold separately and are not the same unit.



The cook station setup offers one storage locker at each end of the drawer box with a shelf for a two burner cooker (perfect for a CADAC2 Pro) and storage below. The Storage version has 3 removable dividers which allow you to setup up the drawer box for your requirements. The two locker tops can also be placed on top and are the perfect size for cooking on!



We've included two pull out bed sections, the smaller of which allows for a L-shaped seating setup. This leaves loads of room for carrying bikes, boards and equipment or pair this with our Clachan or Sorcha wheel arch storage units for a full width bed and U-shaped seating option.



Our Torridon units are manufactured from 18mm and 12mm Birch Ply and can be finished in; Black Hexa or Natural Birch



The Torridon can be placed on either the RHS (drivers side) or LHS (passenger side) of your van. Note, in most SWB/L1 vans placing the Torridon on the LHS (passenger side) will result in an overhang of the sliding door of around 400mm



Into bikes? We can include a bike rail threshold cutout in the base of the Torridon unit to allow the fitment of a full width rail.



Small Vans

Our Torridon system can be fitted to smaller vans such as the VW Caddy SWB/Maxi, Ford Connect etc and is available in the following lengths (all at 366mm high)

- 1700mm (Please choose this option if you are adding our Bruich Biadh slide out kitchen pod)

- 1800mm (for Caddy Maxi, Connect L2)



Medium and Large Van Options

Available in the following lengths ; 1700mm, 1800mm (standard), 1900mm & 2000mm.



Our ‘Standard’ Torridon is 1800 x 406 and is the perfect size for most medium-sized vans (T4/5/6,6.1 Transit Custom, Vivaro, Trafic etc).

We also manufacture versions for VW Shuttle, VW Caravelle, Ford Tourneo and Vito CrewCab. Please add any relevant information in the comments section at checkout. For a full range of compatible van fitment please see our FAQ section



SWB Kombi Options

not applicable to LWB / L2 Vans as standard unit sizes (1800mm) will fit behind the seats



1400 x 406 - designed to work perfectly with our Torridon Extension Box.



Add the extension box to extend your sleeping length in a standard SWB Kombi from 1400mm to 1800mm when removing your Kombi seats.



You also have internal storage with front access to store dry goods, luggage and beer!



The unit can be bolted either to the floor or to the side of your Torridon or Schiehallion unit



Even if you don't have a kombi set up you can still pair this unit with any length of Torridon or Schiehallion to add another 400mm with even more seating and storage options, imagine a 1900mm Torridon extended to 2300mm!



Add our matching Torridon extension box upholstery here.



1390 x 480 - designed to work with our upholstery option to bring the height of the unit up to the same height as the folded over seats. Height restricted for seating but provides a bed setup of 1800 x 1500 when paired with our Clachan unit.



1390 x 540 - designed to work at the same level as the folded over seats, this option gives you maximum storage and a large bed platform but for most is too high to sit on although It provides a bed setup of 1800 x 1500 when paired with our Clachan unit

Colour / Finish
  • Example 1800mm x 406mm unit dimensions:

    1800mm (L) x 665mm (W) in seat mode and extends to 1165mm (W) in bed mode.

    It is possible to create an L-shaped sofa by extending the rear section across the van

    Internal dimensions of the large drawer are 1370mm (L) x 337mm (W) x 285mm (D) which also contains three removable, equally spaced separators.

    The front cupboard is 405mm deep, 345mm wide and 370mm deep.



    Example: 1700mm or 1800mm x 366 version

    Overall height: 366mm high

    Arch clearance required: 348mm

    Length 1700mm/1800mm

    Depth 665mm

    Extension 500mm

    Overall:  665mm + 500mm Total width in bed mode 1165mm

    L-shape small extension : 565mm long



    SWB KOMBI VERSION

    The SWB Kombi version is 1400mm(l) x 540mm(h) x 600mm(w). This is so the unit works with the folded rear seats of the van. It provides a higher seating platform but a massive bed for a SWB, plus an unbelievable amount of storage. As ever with vans you do slightly compromise on head room when in seat mode but... your SWB Kombi will be the most functional one out there!



    Overall height: 406mm / 480mm / 540mm

    Length 1400mm

    Depth 665mm

    Extension 500mm

    Overall:  665mm + 500mm Total width in bed mode 1165mm

    L-shape small extension : 565mm long

    Perfectly complimented with out SWB Kombi Clachan or SWB Kombi Sorcha side unit on the adjacent side of your van
